Environmental Data Collection Systems at the Digital Ocean Lab

Environmental Data Collection Systems at the Digital Ocean Lab

The Digital Ocean Lab is equipped with state-of-the-art technology for the continuous monitoring of environmental conditions in marine ecosystems. The lab’s infrastructure supports high-precision data collection across various parameters, enabling researchers to better understand and manage underwater environments. The system comprises smart mooring buoys, multi-sensor platforms and acoustic monitoring arrays.

Core Environmental Monitoring Equipment

1. Datawell DWR 4 Wave Buoy

  • A highly accurate buoy system specifically designed to measure wave height, direction and period.
  • Provides essential data for ocean dynamics research and monitoring surface conditions in real time.

2. Sofar Spotter Buoy with Smart Mooring

  • A compact, real-time surface monitoring system that measures sea state, temperature, and wave characteristics.
  • Equipped with a smart mooring system for autonomous data transmission and improved stability in varying sea conditions.

3. Multiple ADCP (Acoustic Doppler Current Profiler) Systems

  • Sonardyne Origin 600 and Nortek Signature 1000 systems provide detailed current profiles, supporting water column monitoring and circulation studies.
  • ADCPs measure current speed and direction at various depths, offering critical data for sediment transport, tidal flows and ecosystem dynamics. Some systems deliver live data.
© Fraunhofer IGD
Datawell DWR 4 Wave Buoy
© Fraunhofer IGD

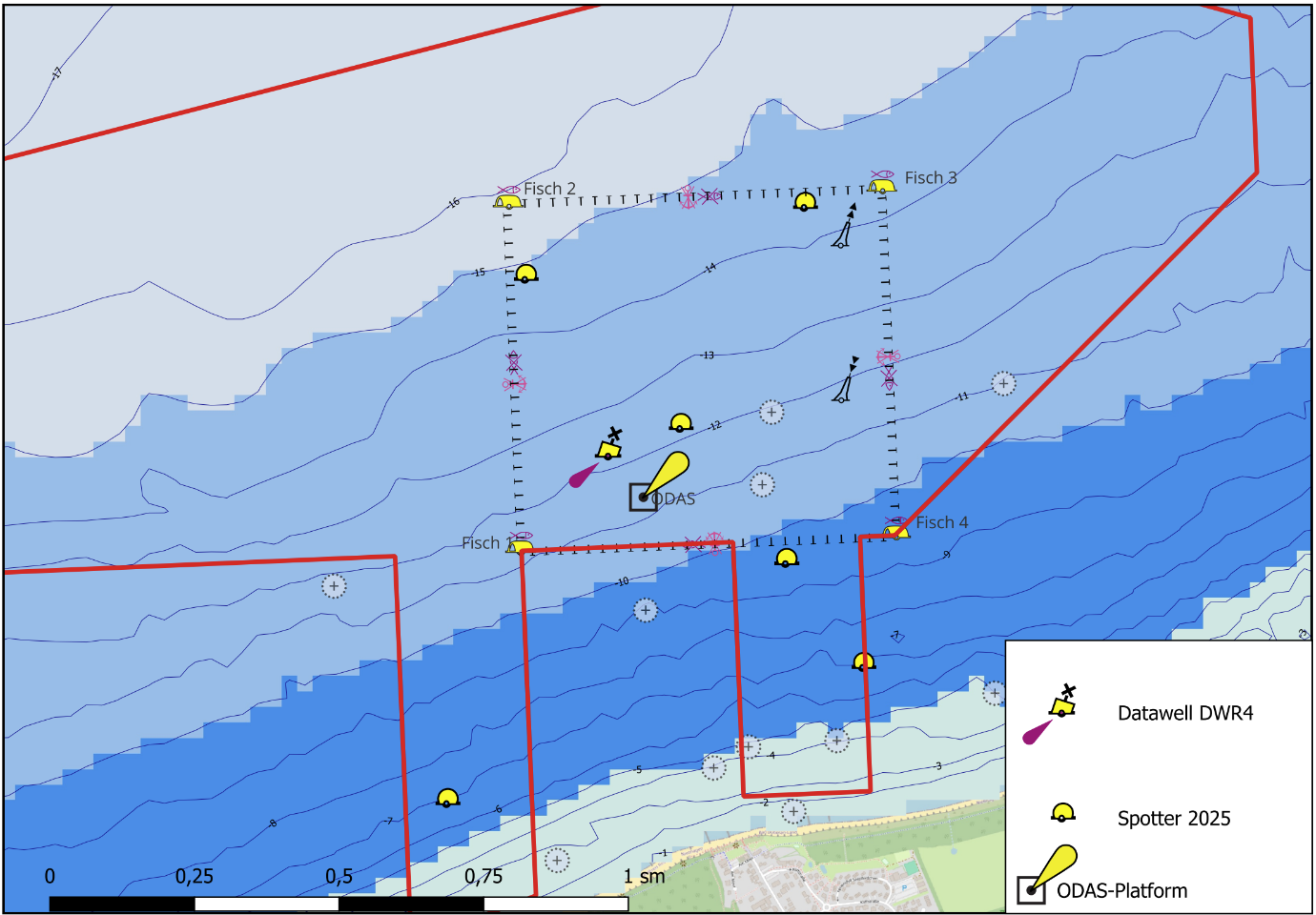

Sofar Spotter Buoy with Smart Mooring
© Fraunhofer IGD
Multiple ADCP (Acoustic Doppler Current Profiler) Systems
© Fraunhofer IGD

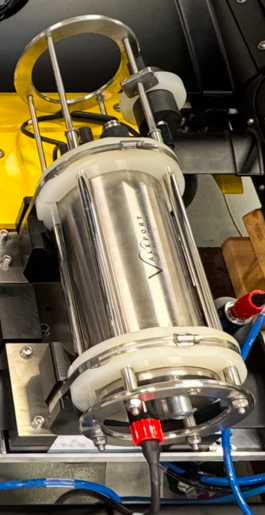

Profiling CTD Sensor-Lift System

4. Weather Station on ODAS Platform

  • The Ocean Data Analytics System (ODAS) platform features a weather station that collects real-time data on:
    • Wind speed and direction
    • Air temperature and humidity
    • Atmospheric pressure
  • This data provides essential context for environmental monitoring, particularly in areas affected by weather-driven oceanographic changes.

5. Profiling CTD Sensor-Lift System

  • Conductivity-Temperature-Depth (CTD) profiling system deployed with a sensor-lift on the ODAS platform, designed to measure vertical profiles of water properties.
  • The CTD system is outfitted with additional environmental sensors for comprehensive water quality assessments:
    • pH Sensor: Tracks acidity, supporting studies on ocean acidification.
    • Turbidity Sensor: Measures water clarity and suspended particles, aiding in sediment and pollution monitoring.
    • Dissolved Oxygen (O₂) Sensor: Provides data on oxygen levels critical for assessing ecosystem health.
    • Light Sensor: Monitors light penetration in the water column.
    • Chlorophyll Sensor: Assesses primary productivity by measuring chlorophyll concentrations.

6. OceanSonics icListen HF Hydrophones

  • High-frequency hydrophones capable of capturing broadband acoustic data for real-time underwater noise monitoring.
  • Useful for detecting natural and anthropogenic sound sources, including marine life communication, vessel noise, and environmental sounds.
  • Facilitate long-term passive acoustic monitoring in diverse marine environments.

7. Hydrophone Array in Seafloor Skid

  • A hydrophone array embedded in a seafloor skid for stationary acoustic monitoring.
  • The array is designed to collect multi-channel acoustic data, enhancing spatial coverage and detection accuracy for soundscapes and marine life studies, including directionality of sound.
© Fraunhofer IGD
ODAS Platform
© Fraunhofer IGD
OceanSonics icListen HF Hydrophones
© Fraunhofer IGD
Hydrophone Array in Seafloor Skid

Applications and Use Cases

  1. Oceanographic Research and Surface Monitoring
    • Systems like the Datawell DWR 4 and Sofar Spotter provide continuous surface condition monitoring, essential for studies on wave dynamicsclimate variability and weather-ocean interactions.
  2. Water Column Profiling and Circulation Studies
    • ADCPs and the CTD sensor-lift system provide data on current patterns, temperature gradients and salinity. These measurements are crucial for understanding ocean stratificationwater mass movement, and nutrient cycling.
  3. Marine Ecosystem Health Assessment
    • Water quality sensors monitor critical parameters such as pHoxygen levels and chlorophyll concentration. This data helps assess the impact of climate change, pollution and human activities on marine biodiversity and habitat conditions.
  4. Sediment and Pollution Monitoring
    • Turbidity sensors and current measurements from ADCPs help track sediment transport and the distribution of suspended particles, contributing to pollution control and sedimentology research.
  5. Acoustic Monitoring and Marine Life Studies
    • The OceanSonics icListen HF hydrophones and hydrophone array are used to monitor underwater soundscapes, detect marine life activity, and study the impact of anthropogenic noise.
    • These systems support research on species distributionmigration patterns and acoustic communication in marine environments.
  6. Climate and Weather Impact Studies
    • Integrated environmental data from the weather stationwave buoys, and CTD system allows researchers to investigate the influence of weather patternsseasonal changes, and climate events on marine ecosystems.



System Integration and Data Management

  • Real-Time Data Transmission: Buoys and platforms transmit data to shore for real-time analysis, enabling rapid response to environmental changes.
  • Multi-Platform Coordination: Environmental data from different sensors are synchronized and integrated to provide a comprehensive understanding of marine conditions.
  • Open Data Standards: The Digital Ocean Lab uses standardized formats and protocols, making data accessible for research collaboration and cross-disciplinary studies.



Advantages and Benefits

  • Comprehensive Environmental Monitoring: Multi-sensor platforms collect high-resolution data across physical, chemical and biological parameters.
  • Long-Term and Real-Time Data: Systems like the ODAS platformbuoys and hydrophones support both continuous monitoring and short-term research campaigns. For many parameters, long-term historical data is available.
  • Enhanced Research Capabilities: The integration of acoustichydrological and atmospheric data improves understanding of complex marine systems.
  • Data Integration for Research and Policy: Collected data supports ecosystem managementclimate impact assessments and marine conservation initiatives.

The Digital Ocean Lab’s environmental monitoring infrastructure provides researchers with the tools and data needed to tackle critical challenges in marine science. These advanced systems enable precision monitoring, long-term studies and real-time responses to environmental changes in underwater ecosystems.
